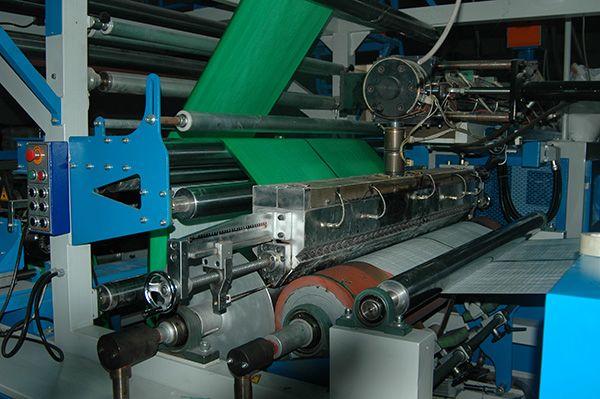

PP Laminare Extruder

PP Laminare Extruder

TEHNICAL SPECIFICATIONS:

Operating speed : 120 m / min (depending on the raw and laminated fabrics.)

Mold width : 1600 mm

Max. working width : 1500 mm

Min. working width : 400 mm

The raw materials used : polypropylene, polyethylene

Laminated fabric can be : pp bags, nonwoven, woven cloth fabric, paper

EXTRUDER

Extruder capacity : 150 kg / h (maximum)

Screw diameter : 80 mm. barrier

5 of 6 in the mold temperature control sleeve

Ceramic resistor

4 eyed dosing unit

4 automatic LOADERS of raw materials

Aside fire that can use instantly closed-loop recycling system

Hydraulic filter replacement unit

37 kW inverter. main engine

Water cooled hive entrance

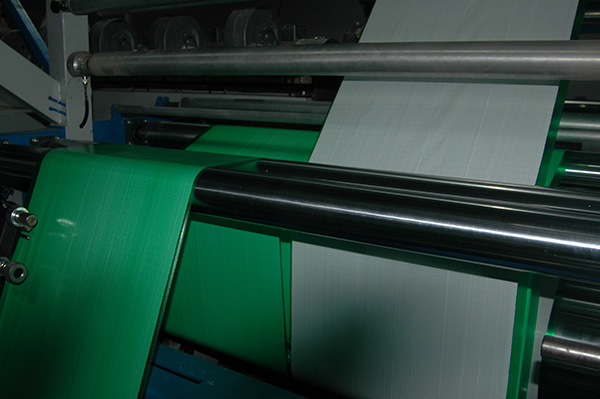

LAMINATION

Dual-stage chorus for sticking to quality

Pre-heating before laminating roller

Opp laminated laminated unit

The right and left sides of the trimming waste system

500 x1600 mm. Chrome plated laminated cooling cylinder

OPP film supply load cell controlled magnetic brake system

SARICI

Automatic bobbin winder unit shifter

500 x1600 mm. Rubber coated roll wrapper

Air shaft winder

Maximum diameter of the coil winder 1300 mm

2 x 500 kg carıskal system for roll download

WARP UNIT

Non-stop warp unit

Warp edge control system unit

Air shafts in the warp

Load cell controlled magnetic brake warp control system

Maximum in the warp coil diameter: 1300 mm

2 x 500 kg carıskal system for loading rolls

Ergonomic design

AUTOMATION SYSTEM

Schneider brand automation system

12.1-inch touch screen wireless control

Digital blood pressure control system

Films counter

Automatic bobbin changing feature set that feature

Ammeter control of the whole system

Complete system, manual operation feature
