K1&K2 Semi/Automatic
K1 SEMI AUTOMATIC SHRINK PACKING MACHINE
TECHNICAL DATA
Type of machine : K1 Semi Automatic
The interior dimensions of the tunnel: 700 x 500 mm Length of tunnel : 1250 mm Width : 900 mm Height : 500 mm Total length : 4500 mm
|
MAXIMUM PACKAGING DIMENSIONS
Height : 350 mm Width : 500 mm Length : 400 mm Power supply : 380 V – 3 Ph, 50-60 Hz. Heating power : 16 kw Average power : 6 kw Total power : 16 kw Motor power of the carrier band: 1/3 hp Sealing bar length : 700 mm Sealing width : 2*3 Shrink film to be used : PE/Polietilen Maximum film thickness : 120 Mikron Air consumption : 60 lt/min Working pressure : 6 Bar Packaging capacity : 4 - 6 pcs.
View applications
|
|
|
|
|
|
|
K2 AUTOMATIC SHRINK PACKING MACHINE TECHNICAL DATA
Type of machine : K2 Automatic
The interior dimensions of the tunnel: 700 x 500 mm Length of tunnel : 1500 mm Width : 900 mm Height : 500 mm Total length : 5000 mm
|
MAXIMUM PACKAGING DIMENSIONS
Height : 350 mm Width : 500 mm Length : 400 mm Power supply : 380 V – 3 Ph, 50-60 Hz. Heating power : 16 kw Average power : 6 kw Total power : 16 kw Motor power of the carrier band: 1/3 hp Sealing bar length : 700 mm Sealing width : 2*3 Shrink film to be used : PE/Polietilen Maximum film thickness : 120 Mikron Air consumption : 60 lt/min Working pressure : 6 Bar Packaging capacity : 15 - 20 Adet
|
View applications

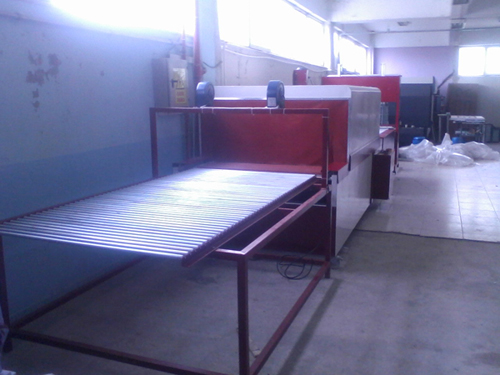

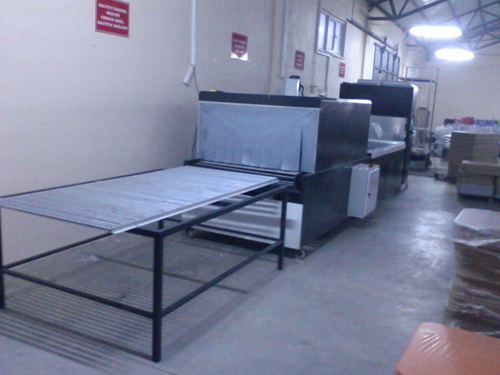

K3&K4 Semi/Full Automatic
Shrink Wrapping Machine Furniture Full Automatic - K4
K5 Thermal Shrink
Shrink packaging machine with Cover and PVC
Shrink packaging machine lid - k5
Technical data:
Type machine: K5 Dimensions : 42 x 55 cm *Special glass lid *Resistance Chamber rustproof * Static paint (email) * Simultaneous cutting and shrink process * Height adjustment for different products * Adjustable table * Possibility of different packages packaging * Setting Heat * CE standard * Production a only operator * Magnetic lock timer
* Provides bonding and shrinking its packaging around the product
* Power : 220V. 50Hz 2,5 kW
* Productivity: 400 - 700 buc/ora;
* Use as packing material: PVC, polyolefin
* It is a chassis with wheels for easy movement * Cover with automatic lifting
|
|
Can pack both product boxes and individual products with thermo foil (boxes of candy, cookies, bread, eggs, chocolate, toothpaste, soap, school supplies, etc.) |
|
K6 Semi Automatic
Shrink Wrapping Machine Semi Automatic tunnel - K6
Power line Shrink Tunnel
Power line Shrink Tunnel + Grouped device
|
Technical data:
Automatic power line tunnel Shrink +Grouped device Cod: S-4022 (SERVO) Cod:GK Conveior de grupaj
- The fully automatic cutting continues
- Gluing in 3 parts
- Torches automatic servo control
- Automatic detection products with irregular sizes
- Easy adaptation to different packaging sizes
- Continuity in quality packaging
- Ideal for frequent product changes
- Easy to use, maximum performance
- Product data memory
- Touch control panel
- Covered with ceramic knives and gluing constant temperature controlled
- Film exchange easier and faster
- The cutting system is suitable for sealing PE-polyolefin
- It can work between 7-100 microns thick film
- Safety sensor
- Automatically update software
- Detecting sensor product dimension
- Control room - front and back of the product
|
- Removable side gluing unit
- Production in succession without operator
- Automatic control of the packaged unloading surplus
- Low-film
- Automatic recognition package size
- Production with CE certificate
- 2 years warranty except consumables (wear parts)
- 5-year warranty parts supply
Capacity:
- 80 pcs / min - 37 m / min
- Cutting dimensions: 400 x 220 mm x unlimited
- Air pressure: 4-6 bar
- Electricity: 380 V, 50 Hz 3 kW
- Weight: 850 kg
- Control Panel: B & R
- B & R PLC
- Power: B & R
- Salt: EATON
- Pneumatic: FESTO
- Reductoare: VARVEL
- Motorlar :NERİ MOTORİ
|
View Video |
